STB-80 MINING EXCAVATOR MACHINE CRAWLER TYPE

ZWY-80/30L COAL MINE TYPE （MA KA）

Functions and features:

1. The machine relies on crawler walking, large driving force, wide range of picking, full section loading rock, leaving no dead corners, no manual assistance to clean the working face, can quickly complete the danger, digging trenches and other work;

2. The power of the machine can be combined with diesel and electricity, and a variety of supporting accessories can be selected.

3. The machine adopts imported hydraulic pilot control rod system, easy to control, strong control ratio, high reliability;

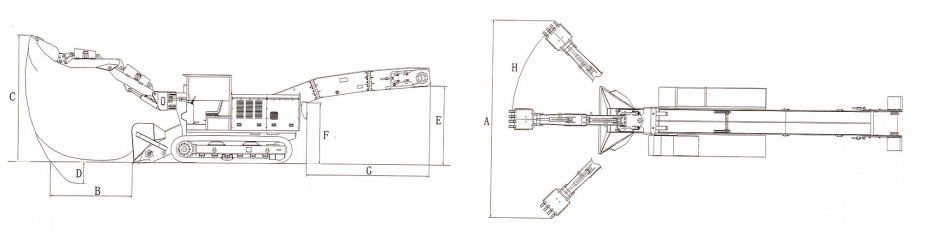

Work Diagram

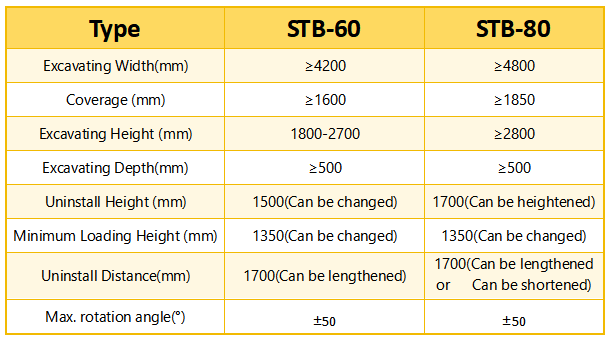

The Scope of work

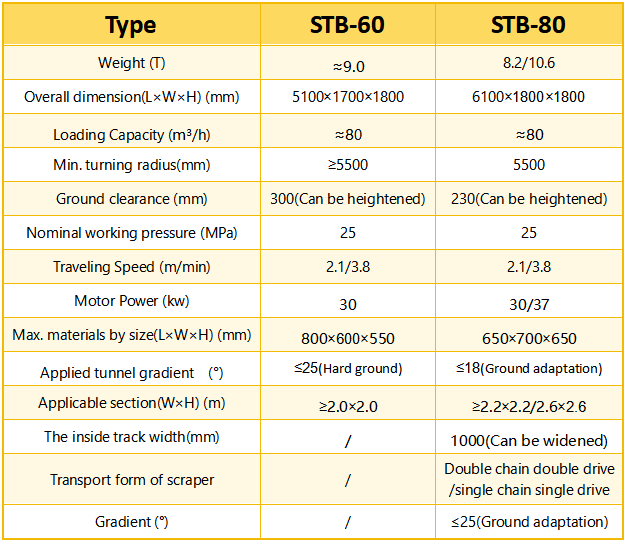

Technical specifications
