STB-180 MINING EXCAVATOR MACHINE CRAWLER TYPE

ZWY-180/75L COAL MINE SPECIAL MODEL ( MA KA)

Functions and features:

STB-180 mining excavator machine crawler type is a continuous production of efficient slagging equipment, mainly used in coal mines and mine main roadway, railway tunnel, water diversion loopholes, national defense engineering and other rare ore block loading operations, can also be used for open work loading bulk materials；

1.The machine is crawler walking, large driving force, wide range of picking, full section loading rock, leaving no dead corners, no manual assistance to clean the working face, and can quickly complete the danger and trench work;

2. The overall design of the machine integrates the advanced technology of Germany and Japan, equipped with a perfect fault detection system and circuit protection system, the management connection adopts the international forefront of the oil port double seal form, improve the reliability of the oil circuit system;

3. Equipped with humanized pilot operating system, greatly reduce the labor intensity of workers, the operation of the machine is safe, easy, comfortable, can adapt to a variety of complex conditions, the performance structure ranks first in the country's products.

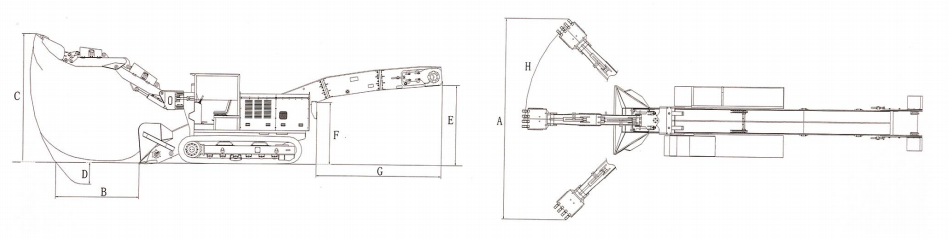

Work Diagram

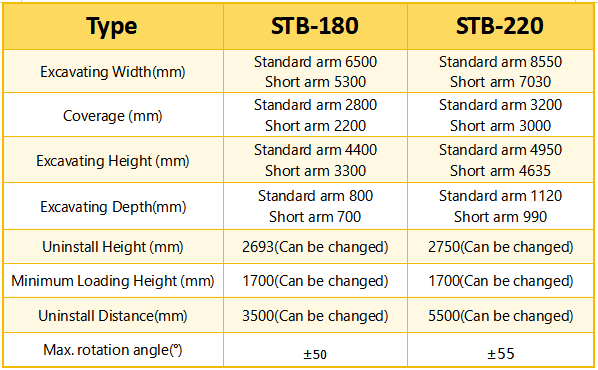

The Scope of work

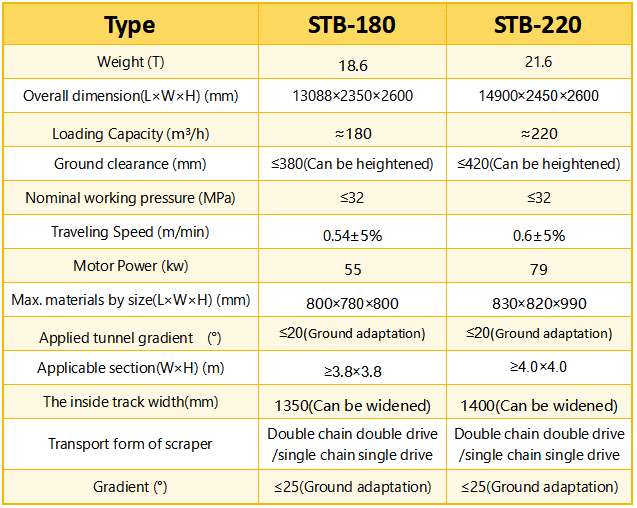

Technical specifications
