STB-120D MINING EXCAVATOR MACHINE CRAWLER TYPE FOR LARGE SLOPE <30 DEGREES

ZWY-120/55L COAL MINE SPECIAL MODEL (MA KA)

Functions and features:

STB-120D crawler slags machine is mainly used for loading of various rare ore blocks in mine, tunnel, hydropower, culvert, national defense engineering, etc. The main accessories adopt international famous brand products, and the product performance reaches the advanced level of similar domestic products. The equipment is suitable for <30°large slope roadway；

1.The machine rely on the machine to walk, large driving force, wide range of picking, full section rock loading, leaving no dead corners, no manual assistance to clean the working face. Ensures optimal performance in all harsh conditions;

2. The machine adopts imported hydraulic pilot control rod system, combined with high efficiency hydraulic valve, to speed up the boom, bucket rod speed and conveying speed, to achieve perfect compound operation performance;

3. This machine work light, action lifting positioning accuracy, grab a wide range, fast transport speed, with safety, environmental protection, high efficiency, super energy saving characteristics, fully in line with ergonomic design, can adapt to a variety of complex conditions, performance and structure in the first similar products in the country, comparable with imported products.

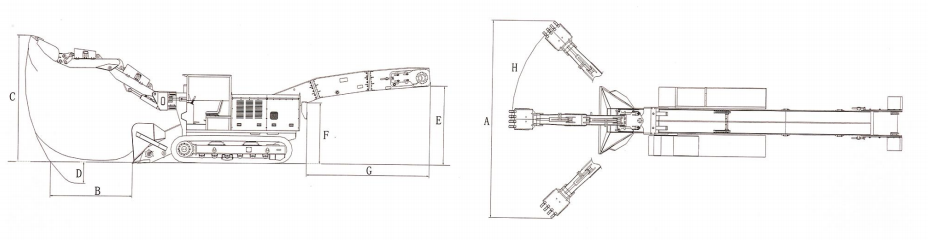

Work Diagram

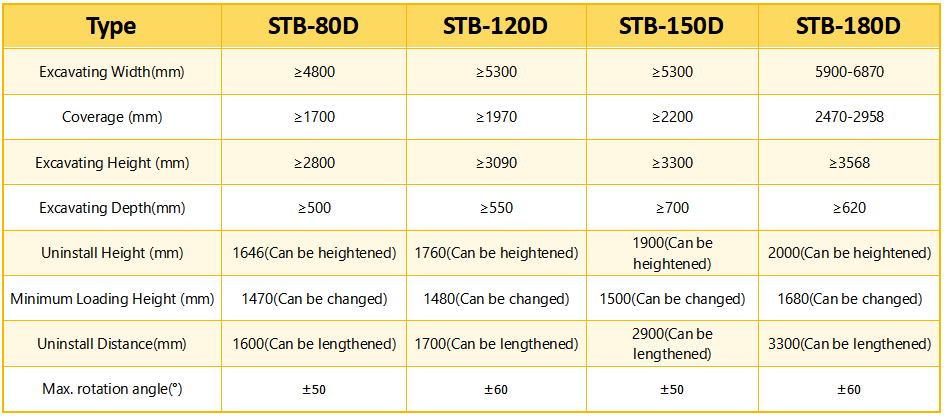

The Scope of work

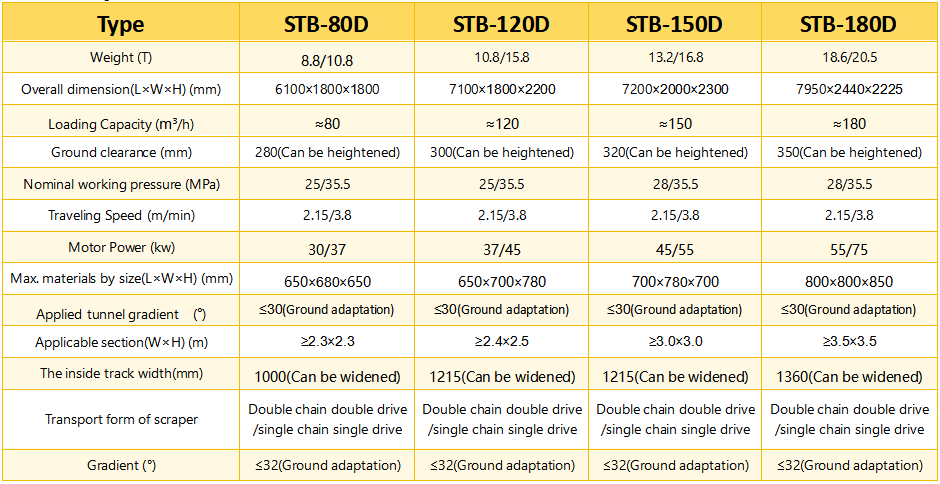

Technical specifications
