STB-60L MINING EXCAVATOR MACHINE TIRE TYPE

ZWY-60/22T COAL MINE SPECIAL MODEL (MA KA)

Functions and features:

1. This machine is four-wheel drive, with large driving force, wide scraping range, full-section rock loading, no dead corners, and no need for manual assistance to clean the working surface:

2. This machine uses a chain conveyor to convey materials, completely replacing the belt conveyor. Feeding materials, the service life is increased by more than 30 times;

3. This machine adopts modular production to facilitate downhole installation operations. It has a small body, compact structure, low center of gravity, flexible maneuverability, and stable operation. It is an irreplaceable model with a narrow section.

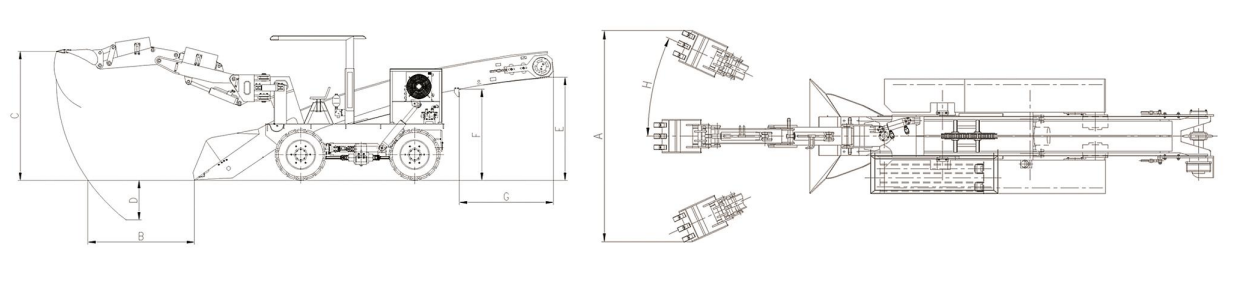

Work Diagram

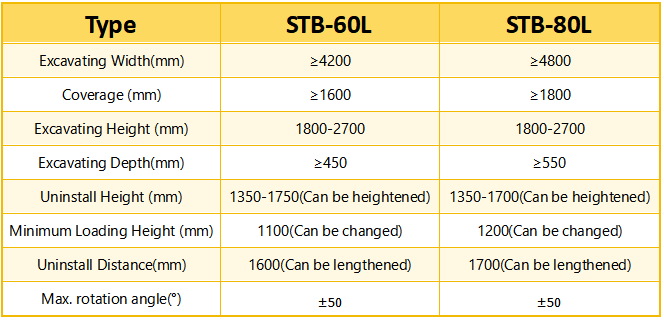

The Scope of work

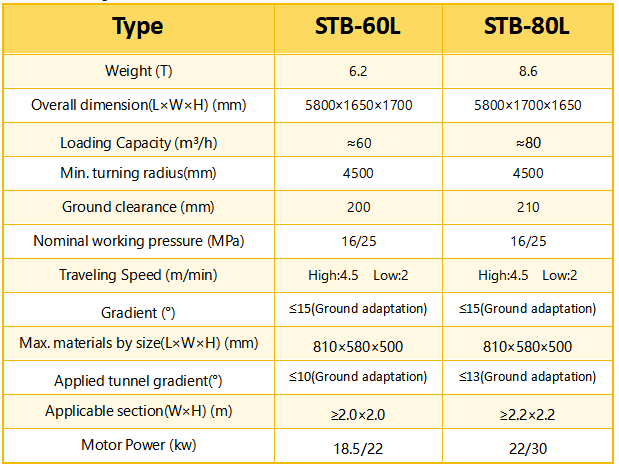

Technical specifications
