STB-60TS MINING EXCAVATOR MACHINE TIRE TYPE

ZWY-60/22T COAL MINE SPECIAL MODEL (MA KA)

Functions and features:

STB-60TS tire conveyor belt slagging machine is a kind of high efficiency mining equipment for continuous production. Mainly used for narrow space cave mining operations, such as metal mines, non-metal mines, water diversion roadway, etc., suitable for the section of 1.8×1.8 meters above the roadway.

This machine adopts electric full hydraulic transmission, hydraulic walking, digging and collecting, conveying, loading four functions. Compact structure, large propulsion force, wide range of scraping, can be full section rock loading, leaving no dead corners, no manual assistance to clean the working face;

1. The machine adopts hydraulic control pilot operation, easy and simple operation, reliable performance, convenient maintenance;

2. The machine has excellent humanized design, the hydraulic system adopts air cooling, there are seats, there is a driving shed, greatly reducing the labor intensity of the workers, the work is light, the action lifting positioning;

3. It has the characteristics of safety, reliability, environmental protection and high efficiency, saving a lot of manpower and so on. It fully conforms to ergonomics. Its power can be divided into motor type and diesel type.

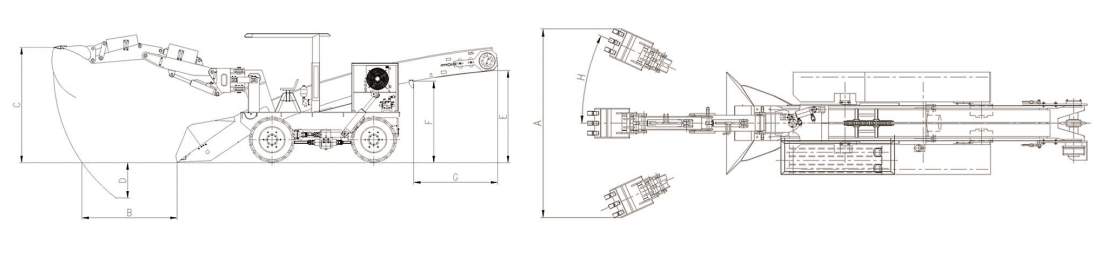

Work Diagram

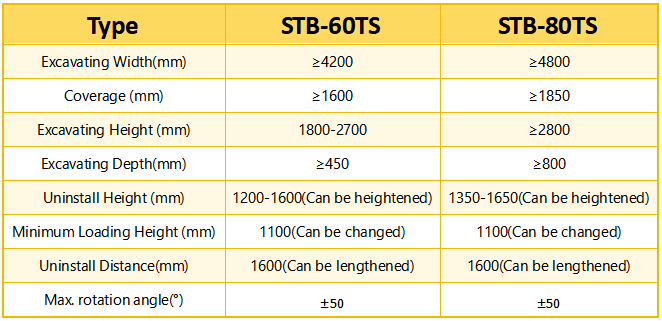

The Scope of work

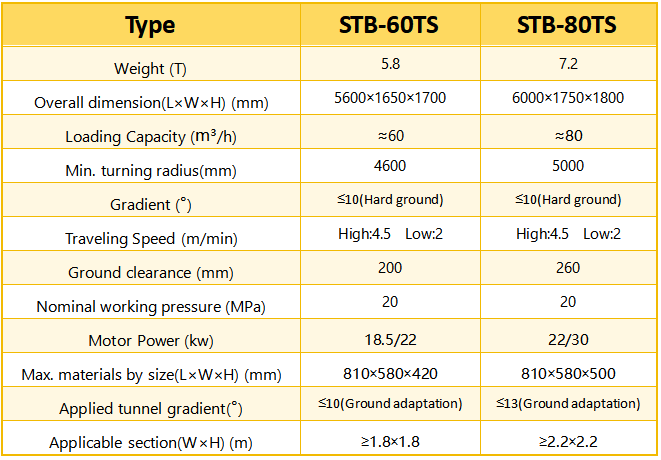

Technical specifications
