MINE ROADWAY REPAIR MACHINE

WPZ-37/600L(MA)   WPZ-55/900L (MA)

Functions and features:

WPZ-37/600L mine roadway repair machine in digging, side cutting, flipping, rock breaking, loading, lifting and other actions, to achieve the digging of fur ditch, undercover, rock breaking, cleaning the bottom of the belt machine, leveling the roadway and small parts lifting and other functions. The equipment can be equipped with breaking hammer, bolt machine and bolt cutter, which can realize rock breaking, drilling bolt holes, bolt (cable) cutting and assembling special beam support device, which can assist in loading and unloading U-shaped beams. One machine can complete the whole operation of roadway repair.

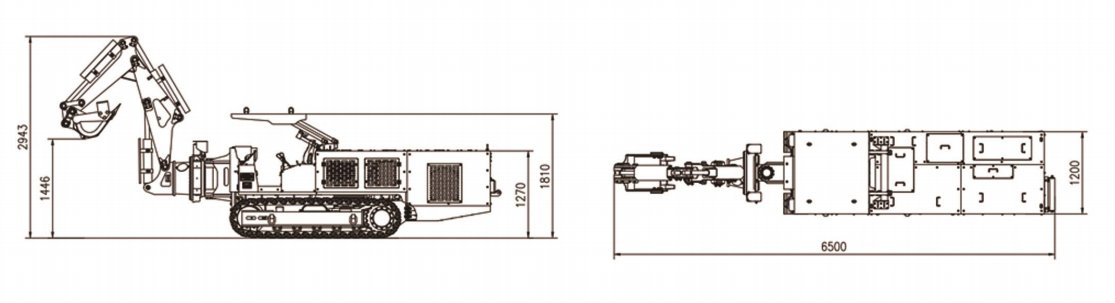

Work Diagram

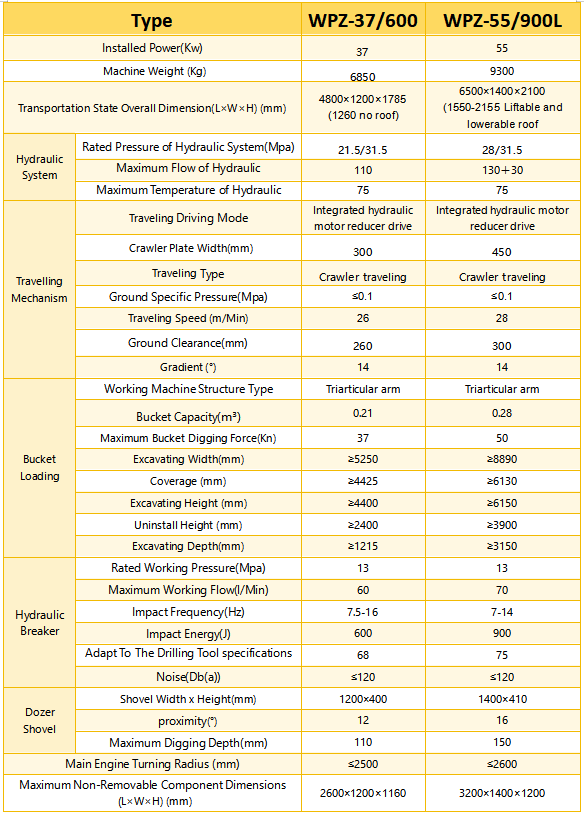

Technical Specifications
