STW-65 MINE ELECTRIC EXCAVATOR

MWD6/0.3L (MA KA)   MWC6/0.3L (MA KA)

Functions and features

1. The machine is suitable for mining in coal mine, metal mine, non-metal mine, shaft, inclined shaft and roadway excavation of rock loading, bottom clearing and frozen soil. The machine has the following characteristics: compared with the traditional manual bottom cleaning, the use of the machine can greatly save the labor cost, improve the working efficiency and improve the working environment. The operator works under the protection of the cab, which is conducive to safe production;

2. Compared with the traditional diesel-powered mini excavator, it has the characteristics of energy saving, low noise, no exhaust pollution and high efficiency, and is more suitable for underground use.

3. The machine is compact in structure, small in size and small in sub-assembly, which is easy to use in vertical well.

4. The minimum rotating structure is adopted, and the tail will not exceed the width of the vehicle when the body is turned on, so it is more suitable for working in the narrow space of the underground.

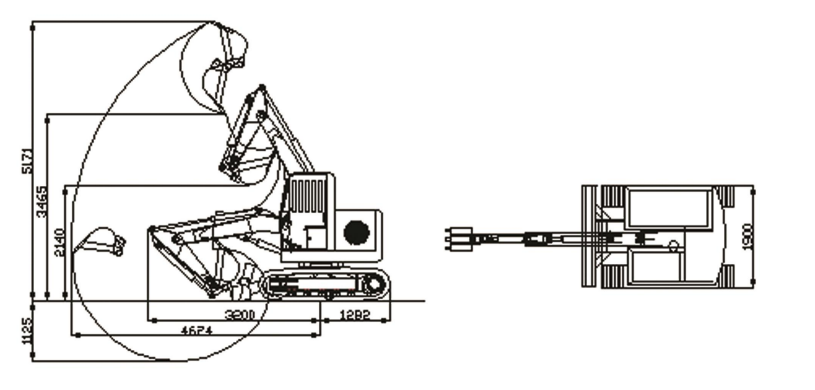

Work Diagram

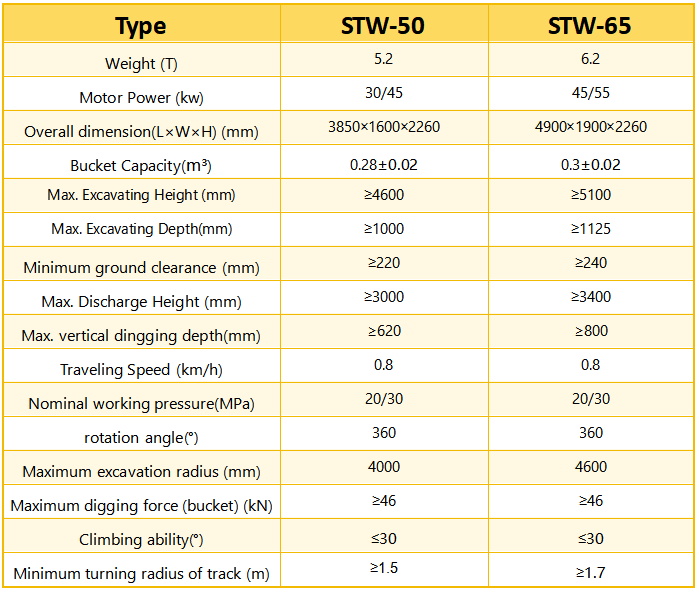

Technical Specifications
