STX-100 MILLING AND DIGGING MACHINE (MA KA)

Functions and features

1. Equipped with a milling head, it can work in coal or semi-coal roadway with a hardness of 4F, without the need for shooting. The machine has a fast connector, the digging bucket and the milling head are exchanged when the rock roadway is driven, and the dregs are loaded with the digging bucket after blasting, which realizes the dual-use of one machine;

2. The main hydraulic parts adopt the spur gear transmission imported from Germany, driven by the high torque hydraulic motor, to ensure that the milling and digging head can cope with the harsher high load working conditions. Equipped with internal spray and high-pressure external spray device, good dust removal effect;

3. Due to the large weight of the milling and digging head, the whole machine adopts the design concept of super strong structural parts to ensure the sufficient weight of the whole machine, the stability of the rock cutting time and improve efficiency;

4. The structure of roadheader rotary table is adopted, and the quality is stable and reliable.

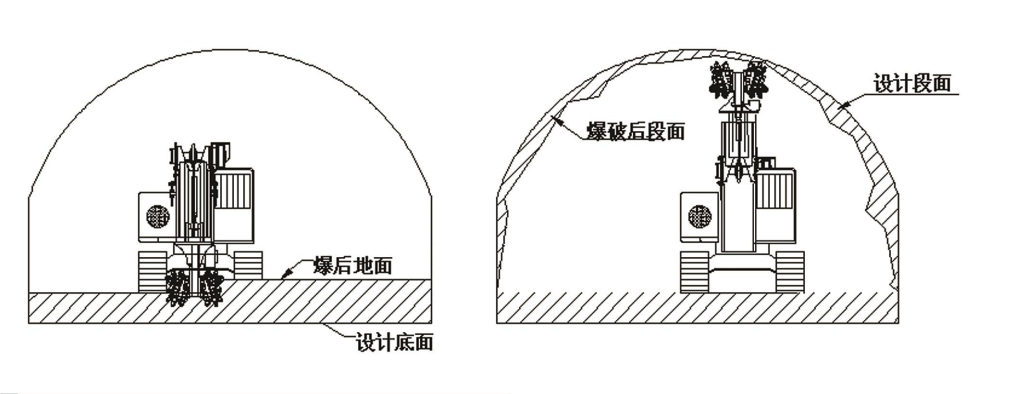

Work Diagram

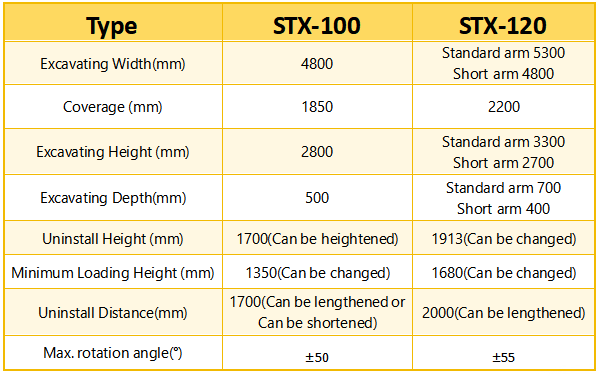

The Scope of work

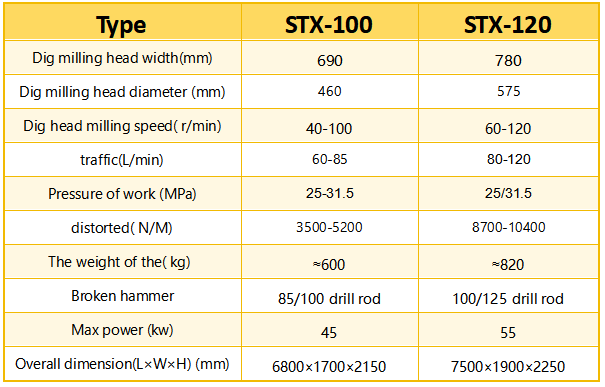

Technical Specifications
