STP-100 CRAWLER HEADING CRUSHER (MA KA)

Functions and features:

1. STP-100 crusher, the company absorbs the advantages of similar products at home and abroad on the basis of the actual needs of users, independent research and development, manufacturing of a multi-functional roadway drilling equipment. The hydraulic system adopts load sensitive variable system;

2. The machine is compact in structure, the main action is controlled by proportional pilot valve, the operation is easy and simple, the work is stable and no impact. The use of the crusher in the underground roadway digging, undercover, etc., can eliminate the firing operation, greatly reduce the labor intensity of the staff, save the cost of the digging operation, save a lot of labor, safe and reliable;

3. In addition, the crusher is simple to operate, easy to learn, easy to operate and comfortable, the standard configuration of the operating rod, smooth operation, the backrest chair close to the human body shape, solid and durable, can effectively alleviate the driver's operating fatigue Lao. Easy maintenance, oil pump and control valve cover can be fully opened, easy to check, maintenance. Full hydraulic system control, single power, advanced hydraulic system, reasonable pipeline layout, good safety and stability.

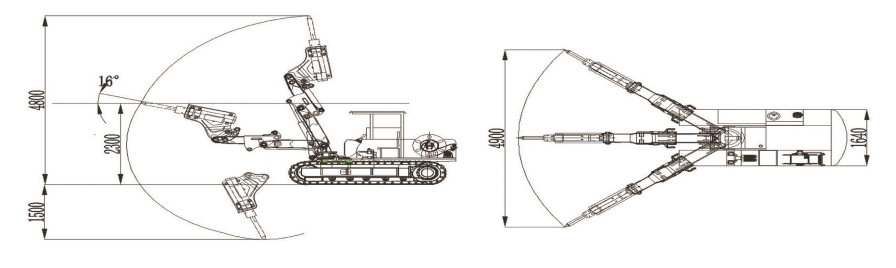

Work Diagram

The Scope of work

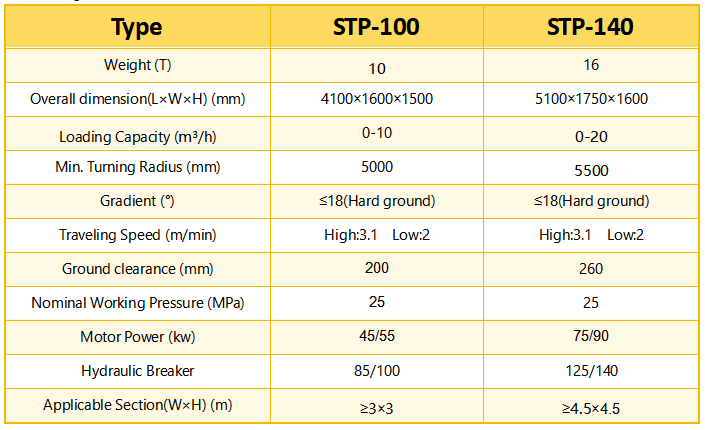

Technical Specifications
