ROCK DRILLING RIG

Functions and features:

1. Rock drill:

Imported rock drill, with super anti-bending ability, high drilling speed and low drilling tool loss and other characteristics, effectively improve the adaptability of tunnel side holes;

2. Propeller:

Light aluminum alloy beam, efficient bending, torsion and fatigue resistance, long service life. Unique single-layer arrangement of hose reel, with reliable pipe clamp structure, hose tensioning performance is good, effectively improve hose life, reduce maintenance strength;

3. Drill Arm:

All-round parallel drilling arm, rapid and accurate positioning; Square structure, high strength, good shock absorption performance;

4. Drilling system:

It has the function of anti-sticking drill, anti-aircraft hitting and automatic recoil, which can effectively improve drilling efficiency and reduce drilling tool loss.

5. Hydraulic system:

The auxiliary action of leg and ceiling light adopts electronic control design, the pipeline is simple and easy to maintain;

6. Electrical system:

Selected Schneider, Siemens and other international well-known brands of electrical components, high reliability, long service life; It has the functions of grounding fault protection, phase sequence protection, motor overload protection and engine fault alarm.

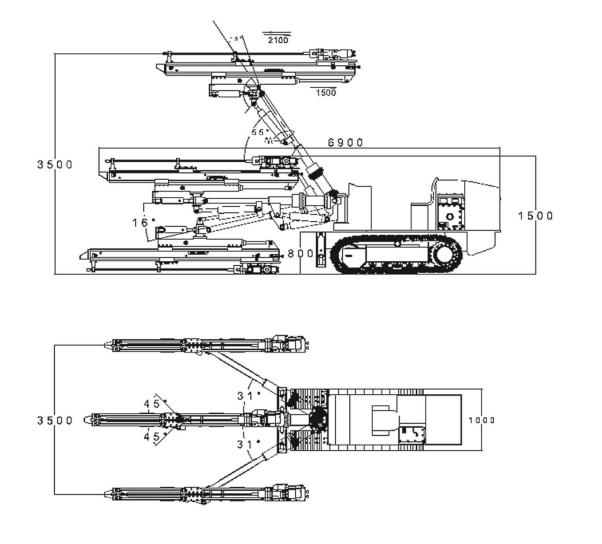

Work Diagram

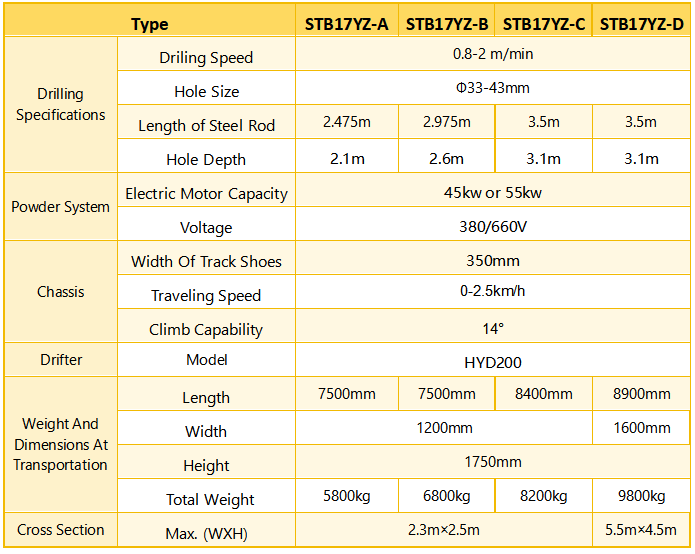

Technical Specifications
