STX-220 COAL UNLOADER

Functions and features:

1. The power system of conveyor coal unloader is driven by three-phase motor, which is flexible and flexible. Using motor drive, low maintenance cost, no pollution, low failure rate. Motor operation is one third of engine operation cost; 2. The coal does not fall, and the rear end can be directly loaded into the car, reducing secondary dust pollution, energy saving and environmental protection; 3. The feed port mechanism is compact and closed, which reduces the normal passage of the train on the track, and the site cleaning reduces the cleaning;

4. Unloading range of the workers in the later period, which can better unload the carriage and reduce the cleaning labor intensity of the workers;

5. Three-dimensional air supply, fresh air circulation, fluorine-free environmental protection, large capacity automatic heating and cooling air conditioning system;

6. High unloading efficiency, dual pump confluence, multi-action compound, improve working efficiency.

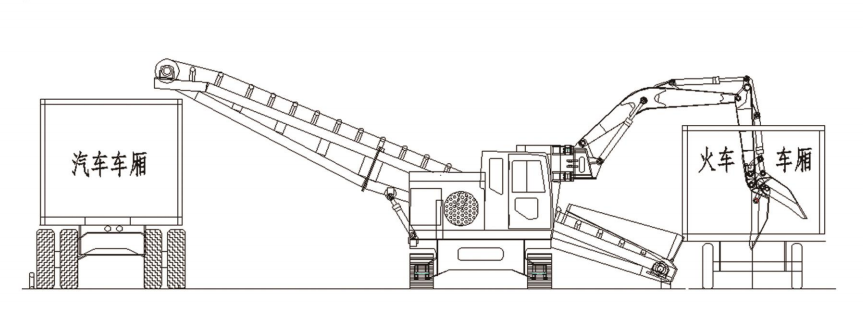

Work Diagram

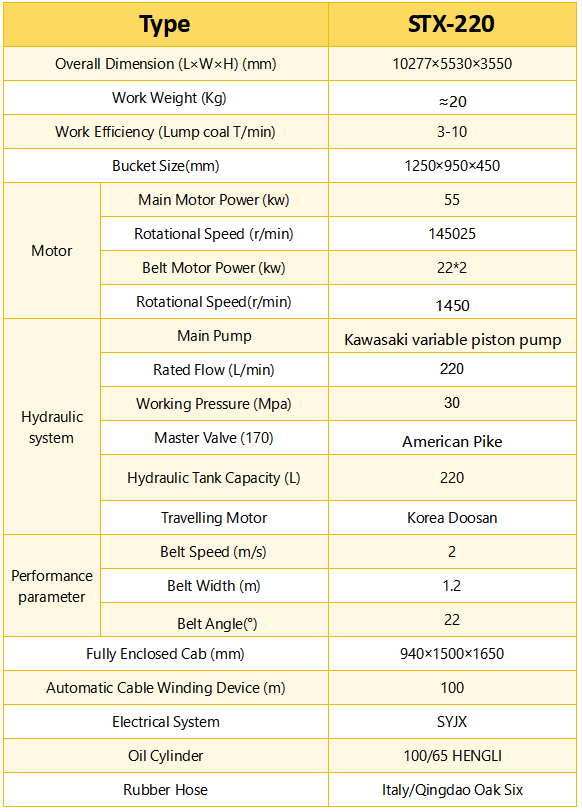

Technical Specifications
